What’s this for?

• Epiphone Guitars using the “Inspired By Gibson Custom” bridge system
• Not for the single-cut IGC Les Paul Custom. That guitar uses large bushing mounted bridge posts, so it takes E-Sert or ESWKIT, not IBG-Sert.

Standard in this Tone-Lock™ Bridge Kit

• Tone-Lock™ Bridge

  Alloy: 70% zinc, 30% aluminum
  Net Weight, including lock nuts:

  • with brass saddles – 1.755 oz./49.75g
  • with titanium saddles – 1.665 oz./47.2g

  Length: 3.31″/84.1mm
  Saddle radius: 12″
  Post spacing: 2.91″/74.0mm (0.8mm lock nut clearance to accommodate 73.6mm-74.4mm post spacing)
  Post hole diameter (stepped): upper, .293″/7.45mm; lower, .2165″/5.5mm
  String Spread (center-to-center, outer saddles): 2-1/16″/2.0625″/52.39mm

  – Standard Matching Pre-Notched Saddles

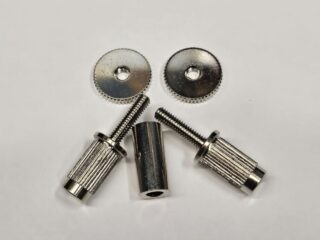

• IBG-Sert™ bell brass bridge posts

  Material: Studs, Bell Brass, plated; Thumbwheels, Brass, plated
  Weight, with thumbwheels: .885 oz./25.1g
  Overall length: 1.25” / 31.75mm
  Length below flange: .55” / 14.0mm
  Stud length, above flange: .59” / 15.0mm
  Diameter, lower section: .296” / 7.52mm
  Flange diameter: .393” / 10mm
  Flange thickness: .061” / 1.55mm
  Thumbwheels:

  • Diameter: .63″/16mm
  • Thickness: .11″/2.8mm

  – IBG-Sert™ bell brass bridge posts
• Tone-Lock™ Lock Nuts
  A pair of Lock Nuts for Tone-Lock™ bridge, in either 4mm or ABR-1 thread, depending upon the application.

  – Pair of 4mm Lock Nuts
• Lock Nut/Tailpiece Stud Tool

  For tightening tailpiece studs without damaging the plating, as is possible using a conventional screwdriver. Use as shown for tailpiece studs. For Tone-Lock™ bridge lock nuts, use the unnotched end when the top of the bridge stud is below the lock nut slot; use the notched end when the bridge protrudes into the lock nut slot. Included FREE with Tone-Lock™ Bridges, Tone-Lock™ Kits, & Tone-Lock™ Master Kits.
  – Corsa-Faber Locknut Tool
• OPTIONAL Tone-Lock™ Bridge BRASS

  Material: Solid Bell Brass, Machined
  Net Weight, including lock nuts:

  • with brass saddles – 2.24 oz./63.5g
  • with titanium saddles – 2.15 oz./61.5g

  Length: 3.31″/84.1mm
  Saddle radius: 12″
  Post spacing: 2.91″/74.0mm (0.8mm lock nut clearance to accommodate 73.6mm-74.4mm post spacing)
  Post hole diameter (stepped): upper, .293″/7.45mm; lower, .2165″/5.5mm
  String Spread (center-to-center, outer saddles): 2-1/16″/2.0625″/52.39mm

  – Machined BELL BRASS!
• View installation video, Applicable to Insert™, E-Sert™, IBG-Sert™ and USA/ABR-1 “Plus” post Installations



Optional Bridge and Tailpiece Bushings

Why do you need this option? Click here to learn why!
